Geo Bollard
The GEO Bollard is a highly customisable option for the public realm and perfect for any project requiring high design and exceptional build quality to enhance an urban environment.
Designed by Lifschutz Davidson Sandilands, it features the distinctive "shadow gap" design that runs through the rest of the GEO range, enabling easy co-ordination and uniformity to minimise street clutter. This design detail can also house varying options such as reflective strips or lighting solutions.
Manufactured with a 316 stainless steel bead blasted body and machined cap for a robust yet attractive aesthetic, the GEO Bollard is available in an array of fixing types, diameters, finishes and even PAS68 anti-terrorist options to provide an almost infinite level of customisation for your project.
Available in buried flange, buried root, surface fixed or lift-out variants, recessed and surface folding options are available to special order.
- Highly customisable bollard
- Part of the GEO street furniture range
- Made from durable stainless steel
Price Range
- £
- £
- £
NBSPlus Codes
Q50 Site/street furniture/equipment
Division
Contact
01422 312993
Technical Downloads (6)
- Marshalls GEO Bollard Download Marshalls GEO Bollard
- street furniture maintenance guide Download street furniture maintenance guide
Certifications, Accreditations & Credentials
Sketch Up Files
- Marshalls GEO Bollard Download Marshalls GEO Bollard
Technical Documents
- street furniture maintenance guide Download street furniture maintenance guide
CAD Details
- geo bollard Download geo bollard
CAD Files
- rhinoguard geo 75 40 protective bollard Download rhinoguard geo 75 40 protective bollard
- rhinoguard geo 25 40 protective bollard Download rhinoguard geo 25 40 protective bollard
- rhinoguard geo 15 30 protective bollard Download rhinoguard geo 15 30 protective bollard
Product Details
| Product Name | Material | Finish | Diameter (mm) | Height (mm) | Height Above Ground (mm) | Overall Height (mm) | Width (mm) | Reflective Tape Available | Reflective Tape Colours | Weight (kg) | Fixing Method |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Geo Bollard Ø140 Rem | Steel | Bead Blasted | 140 | 1100 | 1100 | 1300 | 250 | Yes | Red, White or Yellow | 18 | Removable |
| Geo Bollard Ø140 Root Fixed | Steel | Bead Blasted | 140 | 1100 | 1100 | 1300 | 250 | Yes | Red, White or Yellow | 12 | Root Fixed |
| Geo Bollard Ø140 Sub Surface | Steel | Bead Blasted | 140 | 1100 | 1100 | 1300 | 250 | Yes | Red, White or Yellow | 12 | Sub Surface Mounted |
| Geo Bollard Ø140 Surface Mount | Steel | Bead Blasted | 140 | 1100 | 1100 | 1100 | 250 | Yes | Red, White or Yellow | 12 | Surface Mounted |

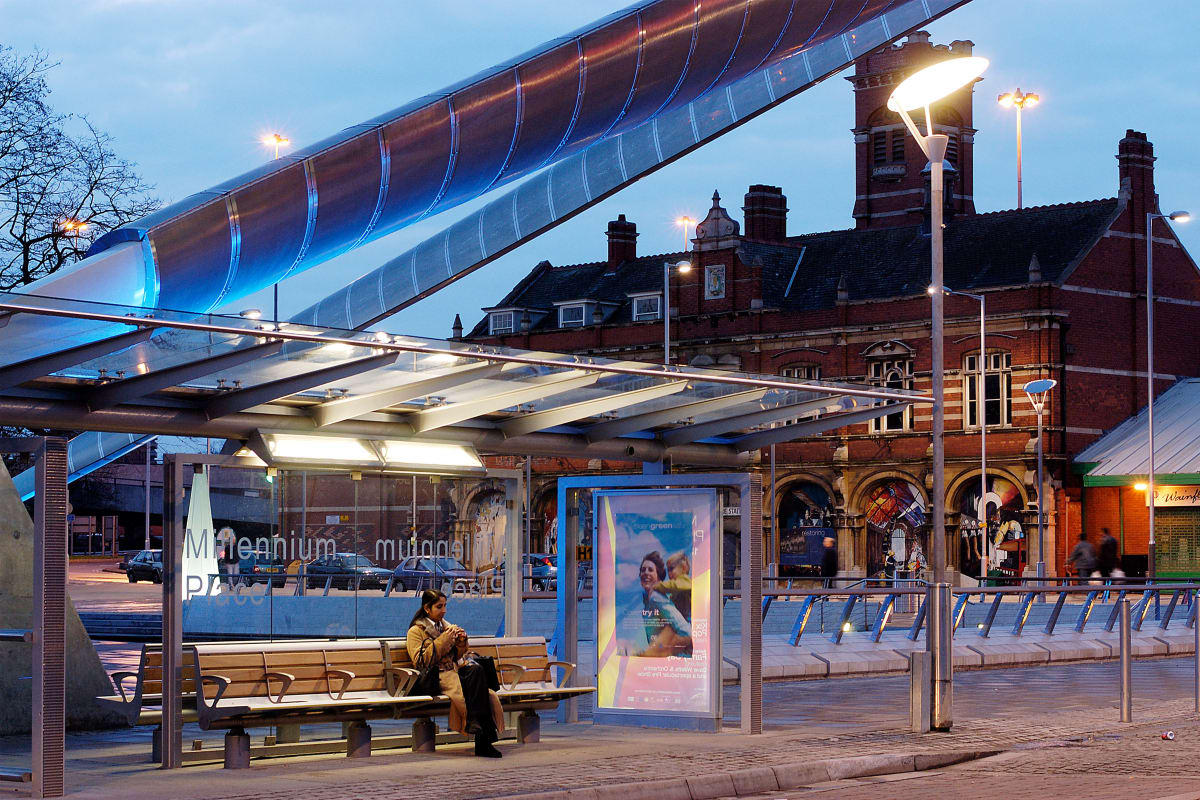

motis shelter with seating geo bollards geo indirect parklight and bespoke post and rail system
Geo Bollard BIM Model
At Marshalls we work alongside appropriate guidelines in which we are able to provide high quality 3D objects of our products that contain rich data to satisfy that information required by our clients.
We strive to improve the relationship with stakeholders and the BIM process enables us to share the relevant information.
- Our BIM models are available to download directly from our BIM library.
- We have a range of models available in AutoDesk Revit format including CoBie, IFC and NBS data.
