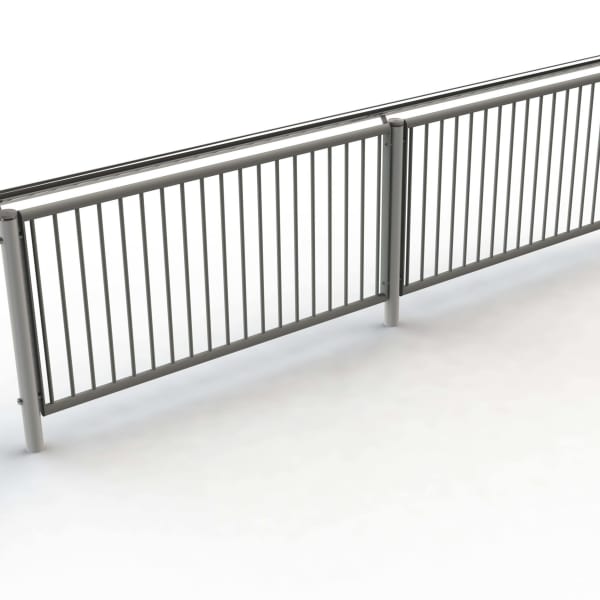

Geo Handrail and Balustrade
Marshalls' Geo Handrail and Balustrade offers a contemporary, urban design, manufactured in premium materials.
Geo Handrail and Balustrades are fully customisable, depending on the project's needs. Whether straight and level runs, ramps, curves, corners or staircases are required, this versatile Geo product can be used across a wide range of applications.
Manufactured from high quality 316 grade stainless steel, Geo Handrail and Balustrade is available in a bead blasted finish, providing a resilient and robust solution regardless of weather conditions or usage.
Illumination can be integrated for functional or architectural purposes. Low voltage IP67-rated power supplies combined with high luminosity LEDs offer durability and efficiency. Available in three basic models, the configuration of Geo Handrail and Balustrade is entirely site specific, providing a fully customisable solution backed by Marshalls' extensive installation experience.
- Manufactured from high quality 316 grade stainless steel
- Fully customisable
- Additional options and accessories available
Technical Downloads (6)
- street furniture maintenance guide Download street furniture maintenance guide
- geo handrail twin root fix Download geo handrail twin root fix
Certifications, Accreditations & Credentials
Technical Documents
- street furniture maintenance guide Download street furniture maintenance guide
CAD Details
- geo handrail twin root fix Download geo handrail twin root fix
CAD Files
- geo handrail twin root fixed Download geo handrail twin root fixed
- geo handrail twin baseplated Download geo handrail twin baseplated
- geo handrail single root fixed Download geo handrail single root fixed
- geo handrail baseplated Download geo handrail baseplated
Product Details
| Product Name | Post Diameter (mm) | Height Above Ground (mm) | Panel Sizes (mm) | Panel Options | Fixing Method |
|---|---|---|---|---|---|
| Geo Handrail (Twin) Rootfix | 76.1 | 946 | Root Fixed Surface Mounted Sub Surface Mounted |
||
| Geo Handrail (Single) Baseplated | 76.1 | 946 | Root Fixed Surface Mounted Sub Surface Mounted |
||
| Geo Handrail (Twin) Baseplated | 76.1 | 946 | Root Fixed Surface Mounted Sub Surface Mounted |
||
| Geo Handrail (Single) Root Fixed | 76.1 | 946 | Root Fixed Surface Mounted Sub Surface Mounted |
||
| Geo Balustrade Baseplated | 76.1 | 1106 | 2500 Panel 1500 Panel 1000 Panel |
Vertical Infils Horizontal Infils |
Root Fixed Surface Mounted Sub Surface Mounted |
| Geo Balustrade Root Fix | 76.1 | 1096 | 2500 Panel 1500 Panel 1000 Panel |
Vertical Infils Horizontal Infils |
Root Fixed Surface Mounted Sub Surface Mounted |
Geo Handrail and Balustrade BIM Model
At Marshalls we work alongside appropriate guidelines in which we are able to provide high quality 3D objects of our products that contain rich data to satisfy that information required by our clients.
We strive to improve the relationship with stakeholders and the BIM process enables us to share the relevant information.
- Our BIM models are available to download directly from our BIM library.
- We have a range of models available in AutoDesk Revit format including CoBie, IFC and NBS data.
