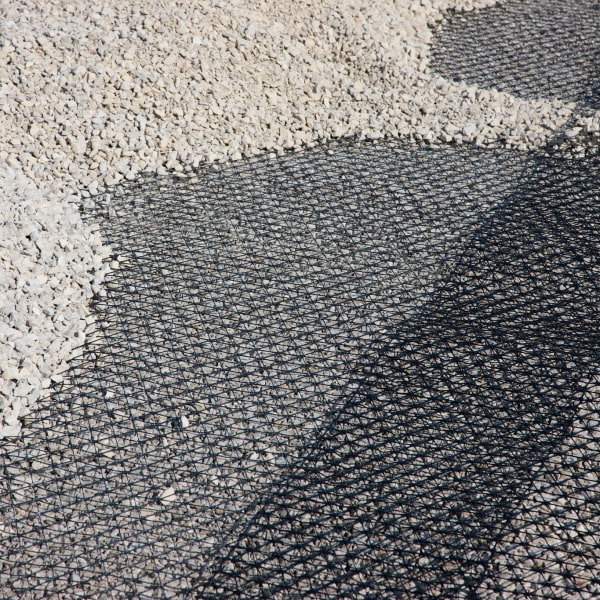

MG15 Grid
A special grade of GeoGrid that has been developed with the UK's market-leading grid supplier, Marshalls MG15 Grid provides additional stability within the sub-base of a Priora permeable pavement.
Installed directly over the sub-grade, the profile of the ribs and the shape of the apertures has been specially developed to maximise interlock with Marshalls' angular Priora aggregate, confining movement and improving the CBR of the ground by 1%.
This can drive cost from the system, or in situations where excavation depth is an issue (such as city centres), it could make a permeable system a possibility where it wasn't before.
For more installation information, see the specification page or speak to our design team.
- Ideal size and shape to interlock with Priora aggregate
- Can improve CBR by 1% to save cost
- Can aid installation of permeable systems where excavation depth is an issue
- Roll size provides coverage of 200m2
Price Range
- £
- £
- £
Carbon Footprint
Available on RequestTechnical Downloads (2)
- declarations Download declarations
- MG15 Grid Datasheet Download MG15 Grid Datasheet
Datasheets
- MG15 Grid Datasheet Download MG15 Grid Datasheet
UKCA Declarations of Performance
- declarations Download declarations
Product Details
Product Name | id | Length (mm) | Width (mm) | Made to Stock / Made to Order | Carbon Footprint |
---|---|---|---|---|---|
MG15 Grid | PV9701401 | 50000 | 4000 | Made To Stock | 0 kg CO2 |
Made to stock: Item is in stock and available for delivery.
Made to order: Item will be manufactured when the order has been placed, lead times vary dependent on product.
