RB150 Bollard

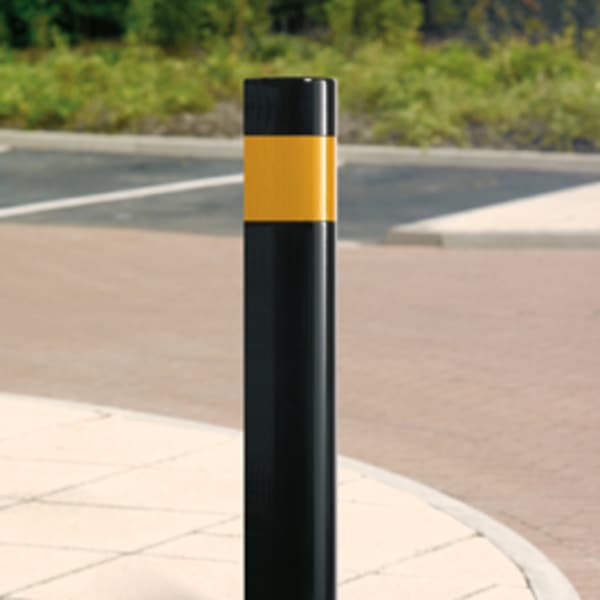

Designed to provide effective perimeter security, protected parking and the demarcation of pedestrian walkways, the flat-topped Rhino RB 150 Bollard, which has a single DDA-compliant band, is manufactured from hot dip galvanised steel. This makes it an incredibly strong and durable protection product.
It is available in 2 models - standard and anti-ram. The anti-ram model features a steel joist for extra reinforcement against vehicular intrusion and ensures that vehicles cannot penetrate beyond the bollard, improving perimeter security.
The RB 150's standard height above ground is 1000mm, but heights of 900mm and 1200mm and 4 widths between 114mm and 194mm also available.
Depending on the requirements of a specific landscape, the RB 150 can be produced with hazard banding in red, white or amber, and there are optional chain connectors available.
It also comes in a wide range of colours and finishes to fit in with the branding of any scheme. The default colour is black but most British Standard and RAL colours are also available.
- Standard or anti-ram models
- Features optional chain connectors and hazard banding
- Root, base plate or lift out and lock fixings
- 3 height options
- 4 diameter options
Price Range
- £
- £
- £
NBSPlus Codes
Q50 Site/street furniture/equipment
Division
Contact
01422 312993
Technical Downloads (2)
- street furniture maintenance guide Download street furniture maintenance guide
- rhino rb150 bollard Download rhino rb150 bollard
Certifications, Accreditations & Credentials
Technical Documents
- street furniture maintenance guide Download street furniture maintenance guide
CAD Details
- rhino rb150 bollard Download rhino rb150 bollard
Product Details
Product Name | Material | Finish | Diameter (mm) | Height (mm) | Height Above Ground (mm) | Overall Height (mm) | Reflective Tape Available | Reflective Tape Colours | Weight (kg) | Fixing Method |
---|---|---|---|---|---|---|---|---|---|---|
RB150 Bollard Anti Ram Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1000 | 1000 | 1500 | Yes | Red, White or Yellow | 28 | Anti Ram |
RB150 Bollard Anti Ram Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1000 | 1000 | 1500 | Yes | Red, White or Yellow | 33 | Anti Ram |
RB150 Bollard Anti Ram Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1000 | 1000 | 1500 | Yes | Red, White or Yellow | 52 | Anti Ram |
RB150 Bollard Removable Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1000 | 1000 | 1500 | Yes | Red, White or Yellow | 20 | Removable |
RB150 Bollard Removable Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1000 | 1000 | 1500 | Yes | Red, White or Yellow | 27 | Removable |
RB150 Bollard Root Fixed Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1000 | 1000 | 1500 | Yes | Red, White or Yellow | 20 | Root Fixed |
RB150 Bollard Root Fixed Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1000 | 1000 | 1500 | Yes | Red, White or Yellow | 25 | Root Fixed |
RB150 Bollard Root Fixed Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1000 | 1000 | 1500 | Yes | Red, White or Yellow | 35 | Root Fixed |
RB150 Bollard Surface Mount Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1000 | 1000 | 1000 | Yes | Red, White or Yellow | 18 | Surface Mounted |
RB150 Bollard Surface Mount Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1000 | 1000 | 1000 | Yes | Red, White or Yellow | 20 | Surface Mounted |
RB150 Bollard Surface Mount Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1000 | 1000 | 1000 | Yes | Red, White or Yellow | 30 | Surface Mounted |
