RhinoGuard® 15/30 Protective Bollard
The Rhinoguard® 15/30 bollard is an innovative product that protects against the risk of a hostile vehicle attack in public spaces. It's the ideal choice for projects which have protective countermeasure specifications. The 15/30 bollard can withstand vehicle speeds of up to 30mph from a 1.5 tonne saloon car, with crash tests resulting in the complete immobilisation of the vehicle, eliminating any chance of a second attack. The tested core can be sleeved with a choice of styles and materials depending on your desired aesthetic. Choices include brushed stainless steel, steel with a polyester powder coat finish from a range of RAL colours, or Ferrocast with a painted finish. The bollard can also be specified with a choice of top cap and reflective banding.
This product is capable of withstanding a 1.5 tonne vehicle travelling at 30mph. The security classification is V/1500/48/90:1.27/2.45
- Crash tested in accordance with BSI PAS 68 standard
- Able to withstand speeds of up to 30mph
- PAS68 Classification Code: Standard Bollard PAS68:2007:V/1500(M1)48/90:1.3/0.0

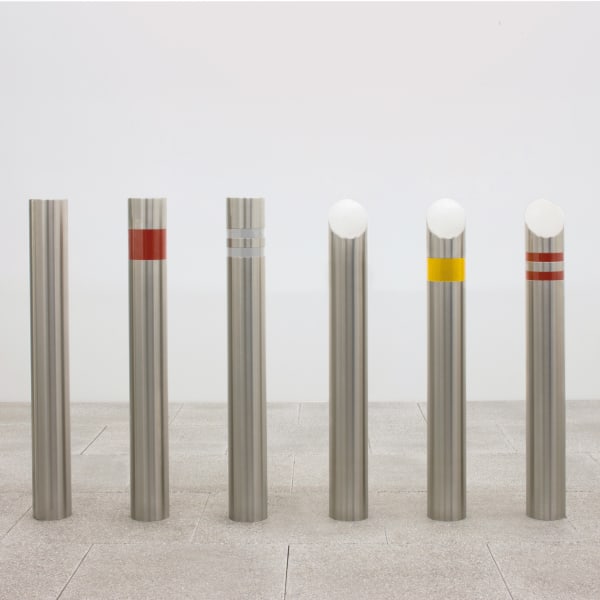

- Numerous sleeve options available
Technical Downloads (4)
- street furniture maintenance guide Download street furniture maintenance guide
- rhinoguard 15 30 protective bollard steel Download rhinoguard 15 30 protective bollard steel
Certifications, Accreditations & Credentials
Technical Documents
- street furniture maintenance guide Download street furniture maintenance guide
CAD Details
- rhinoguard 15 30 protective bollard steel Download rhinoguard 15 30 protective bollard steel
- rhinoguard 15 30 protective bollard stainless steel Download rhinoguard 15 30 protective bollard stainless steel
CAD Files
- rhinoguard geo 15 30 protective bollard Download rhinoguard geo 15 30 protective bollard
Product Details - Bollard Core Options
Product Name | Sleeve Material | Sleeve Finish | Core Diameter (mm) | Sleeve Diameter (mm) | Height Above Ground (mm) | Fixing Method | Core Weight (kg) | Sleeve Weight (kg) | Reflective Tape Available | Length (mm) | Height (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
RhinoGuard® 15/30 Protective Bollard Steel | Mild Steel | Galvanised & Powder Coated | 114 | 168 | 1000 | Root Fixed | 90 | 22 | Yes | 1400 | 1000 | 112 |
RhinoGuard® 15/30 Protective Bollard Stainless Steel | Grade 316 Stainless Steel | Brushed | 114 | 129 | 1000 | Root Fixed | 90 | 8 | Yes | 1400 | 1000 | 98 |
