RhinoGuard® 25/10 Protective Bollard

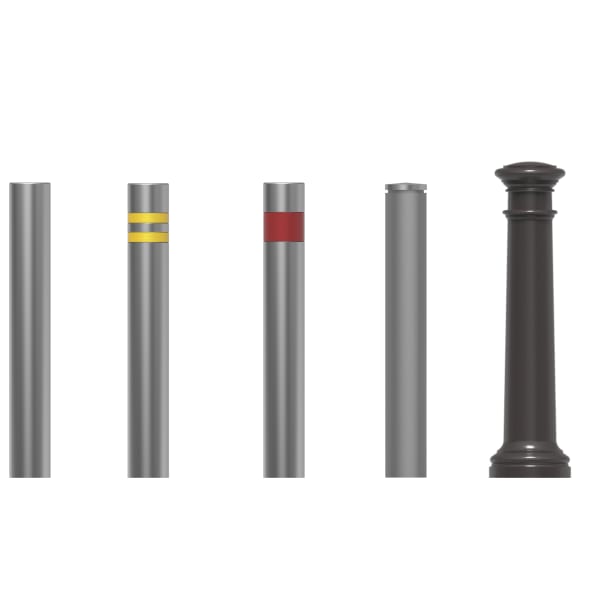

Able to withstand the force of a 2.5-tonne vehicle driving at 10mph, the RhinoGuard® 25/10 protective bollard system is an excellent choice for protecting public spaces. The steel core is set into reinforced concrete foundations and 200mm into the ground – providing the ultimate resistance to vehicular attack. The 25/10 model has been successfully crash-tested in accordance with the BSI PAS 170 standard, rendering test vehicles immobile on collision. The bollards are not only strong enough to withstand the force of a hostile vehicle but they are also an attractive and cost-effective solution, with a choice of sleeves available to cover the certified steel core. Sleeve options include brushed stainless steel, steel with a polyester powder coat finish or painted Ferrocast. A range of standard RAL colours are available.
- Range of sleeve options to complement project design
- High level of protection for a number of design schemes
- Can withstand the impact of a 2.5 tonne 4x4 utility vehicle travelling at 10mph
- Crash-tested in accordance with the BSI PAS 170 standard
Technical Downloads (10)
- street furniture maintenance guide Download street furniture maintenance guide
- rhinoguard 25-10 pas 170 - bollard basic Download rhinoguard 25-10 pas 170 - bollard basic
Certifications, Accreditations & Credentials
Technical Documents
- street furniture maintenance guide Download street furniture maintenance guide
CAD Details
- rhinoguard 25-10 pas 170 - bollard basic Download rhinoguard 25-10 pas 170 - bollard basic
- rhinoguard 25-20 pas 170 - bollard basic Download rhinoguard 25-20 pas 170 - bollard basic
- rhinoguard 25-10 pas 170 - bollard steel Download rhinoguard 25-10 pas 170 - bollard steel
- rhinoguard 25-10 pas 170 - bollard geo Download rhinoguard 25-10 pas 170 - bollard geo
- rhinoguard 25-10 pas 170 - bollard manchester ferrocast Download rhinoguard 25-10 pas 170 - bollard manchester ferrocast
CAD Files
- rhinoguard 25-10 pas 170 - bollard basic - dwg Download rhinoguard 25-10 pas 170 - bollard basic - dwg
- rhinoguard 25-10 pas 170 - bollard steel - dwg Download rhinoguard 25-10 pas 170 - bollard steel - dwg
- rhinoguard 25-10 pas170 - bollard geo - dwg Download rhinoguard 25-10 pas170 - bollard geo - dwg
- rhinoguard 25-10 pas 170 - bollard manchester ferrocast - dwg Download rhinoguard 25-10 pas 170 - bollard manchester ferrocast - dwg
Product Details - Bollard Core Options
Product Name | Core Diameter (mm) | Height Above Ground (mm) | Fixing Method | Core Weight (kg) | Weight (kg) |
---|---|---|---|---|---|
RhinoGuard® 25/10 75Ø Protective Bollard Galvanised & Powder Coated | 75 | 1000 | Root Fixed | 42 | 42 |
RhinoGuard® 25/10 75Ø Protective Bollard Galvanised | 75 | 1000 | Root Fixed | 42 | 42 |
Product Details - Ferrocast Bollard Sleeve Option
Product Name | Sleeve Material | Sleeve Finish | Core Diameter (mm) | Sleeve Diameter (mm) | Height Above Ground (mm) | Core Weight (kg) | Sleeve Weight (kg) | Reflective Tape Available | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|
RhinoGuard® 25/10 225Ø Protective Bollard Ferrocast Manchester Sleeve | Ferrocast | Painted | 75 | 225 | 1100 | 42 | 21 | Yes | 21 |
Product Details - Mild Steel Bollard Sleeve Options
Product Name | Sleeve Material | Sleeve Finish | Core Diameter (mm) | Sleeve Diameter (mm) | Height Above Ground (mm) | Core Weight (kg) | Sleeve Weight (kg) | Reflective Tape Available | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|
RhinoGuard® 25/10 114Ø Protective Bollard Mild Steel Sleeve (No Grooves) | Mild Steel | Galvanised & Powder Coated | 75 | 114 | 1000 | 42 | 15 | Yes | 15 |
RhinoGuard® 25/10 114Ø Protective Bollard Mild Steel Sleeve (1 Groove) | Mild Steel | Galvanised & Powder Coated | 75 | 114 | 1000 | 42 | 15 | Yes | 15 |
RhinoGuard® 25/10 114Ø Protective Bollard Mild Steel Sleeve (2 Grooves) | Mild Steel | Galvanised & Powder Coated | 75 | 114 | 1000 | 42 | 15 | Yes | 15 |
Product Details - Stainless Steel Bollard Sleeve Options
Product Name | Sleeve Material | Sleeve Finish | Core Diameter (mm) | Sleeve Diameter (mm) | Height Above Ground (mm) | Core Weight (kg) | Sleeve Weight (kg) | Reflective Tape Available | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|
RhinoGuard® 25/10 102Ø Protective Bollard Stainless Steel GEO Sleeve | Stainless Steel | Bead Blasted | 75 | 102 | 1100 | 42 | 9 | No | 9 |
RhinoGuard® 25/10 101Ø Protective Bollard Stainless Steel Sleeve (No Grooves) | Stainless Steel | Brushed | 75 | 101 | 1000 | 42 | 6 | Yes | 6 |
RhinoGuard® 25/10 101Ø Protective Bollard Stainless Steel Sleeve (1 Groove) | Stainless Steel | Brushed | 75 | 101 | 1000 | 42 | 6 | Yes | 6 |
RhinoGuard® 25/10 101Ø Protective Bollard Stainless Steel Sleeve (2 Grooves) | Stainless Steel | Brushed | 75 | 101 | 1000 | 42 | 6 | Yes | 6 |
