RhinoGuard® 25/40 Protective Bollard

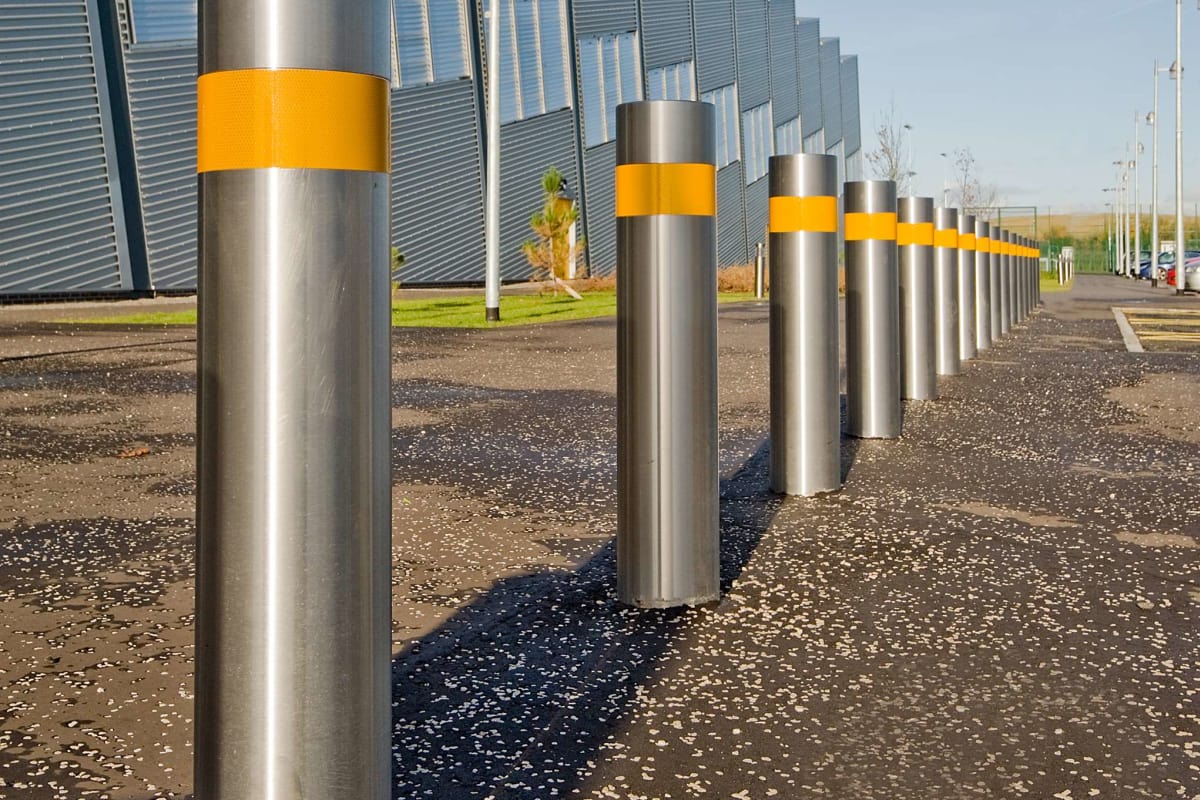

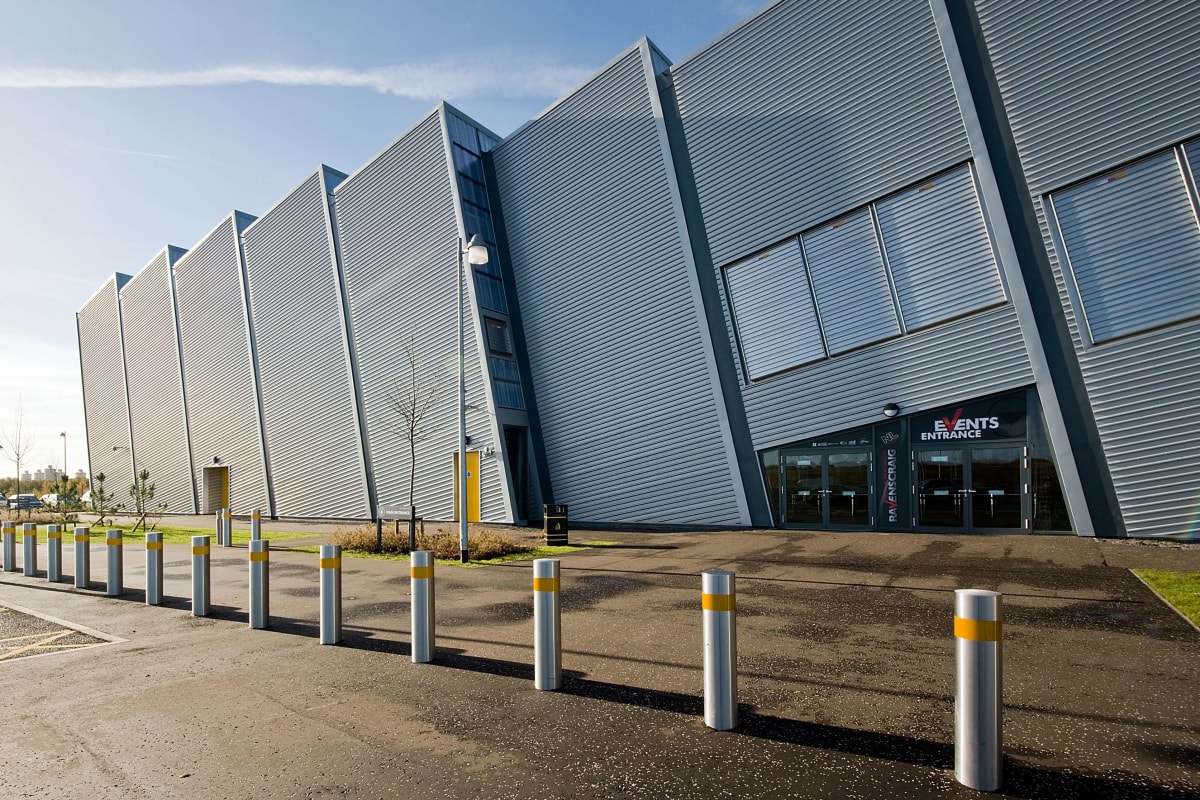

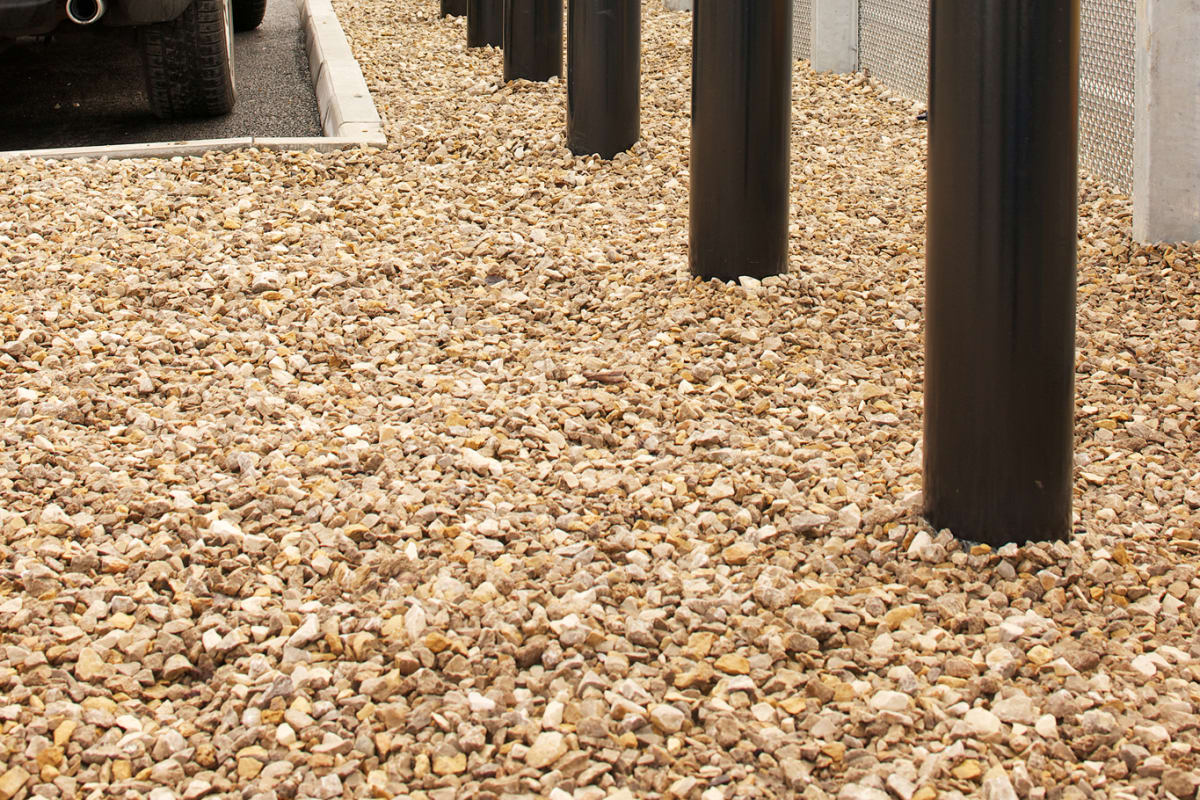

Able to withstand the force of a 2.5-tonne vehicle driving at 40mph, the Rhinoguard® 25/40 protective bollard system is an excellent choice for protecting public spaces. The steel core is set into reinforced concrete foundations and 1000mm into the ground - providing the ultimate resistance to vehicular attack. The 25/40 model has been successfully crash-tested in accordance with the BSI PAS 68 standard, rendering test vehicles immobile on collision. The bollards are not only strong enough to withstand the force of a hostile vehicle but they are also an attractive and cost-effective solution, with a choice of sleeves available to cover the certified steel core. Sleeve options include brushed stainless steel, steel with a polyester powder coat finish or painted Ferrocast. A range of standard RAL colours are available.
25/40 Shallowmount This product is capable of withstanding a 2.5 tonne vehicle travelling at 40mph. The security classification is V/2500(M2)/64/90:2.3/0.0
25/40 Static This product is capable of withstanding a 2.5 tonne vehicle travelling at 40mph. The security classification is V/2500/64/90:0.0/0.0
- Range of sleeve options to complement project design
- High level of protection for a number of design schemes
- Can withstand the impact of a 2.5 tonne 4x4 utility vehicle travelling at up to 40mph
- Crash-tested in accordance with the BSI PAS 68 standard
Technical Downloads (5)
- street furniture maintenance guide Download street furniture maintenance guide
- rhinoguard 25 40 protective bollard steel Download rhinoguard 25 40 protective bollard steel
Certifications, Accreditations & Credentials
Technical Documents
- street furniture maintenance guide Download street furniture maintenance guide
CAD Details
- rhinoguard 25 40 protective bollard steel Download rhinoguard 25 40 protective bollard steel
- rhinoguard 25 40 protective bollard stainless steel Download rhinoguard 25 40 protective bollard stainless steel
- rhinoguard 25 40 protective shallowmount bollard steel Download rhinoguard 25 40 protective shallowmount bollard steel
CAD Files
- rhinoguard geo 25 40 protective bollard Download rhinoguard geo 25 40 protective bollard
Product Details
Product Name | Sleeve Material | Sleeve Finish | Core Diameter (mm) | Sleeve Diameter (mm) | Height Above Ground (mm) | Fixing Method | Core Weight (kg) | Sleeve Weight (kg) | Reflective Tape Available | Length (mm) | Height (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
RhinoGuard® 25/40 Protective Bollard Steel | Mild Steel | Galvanised & Powder Coated | 168 | 194 | 1000 | Root Fixed | 180 | 26 | Yes | 1500 | 1000 | 206 |
RhinoGuard® 25/40 SM Protective Bollard Steel | Mild Steel | Galvanised & Powder Coated | 168 | 194 | 1000 | Cast in Foundation | 300 | 26 | Yes | 1500 | 1000 | 206 |
RhinoGuard® 25/40 Protective Bollard Stainless Steel | Grade 316 Stainless Steel | Brushed | 168 | 204 | 1000 | Root Fixed | 180 | 12 | Yes | 1500 | 1000 | 192 |
RhinoGuard® 25/40 SM Protective Bollard Stainless Steel | Grade 316 Stainless Steel | Brushed | 168 | 204 | 1000 | Cast in Foundation | 300 | 12 | Yes | 1250 | 1000 | 312 |
