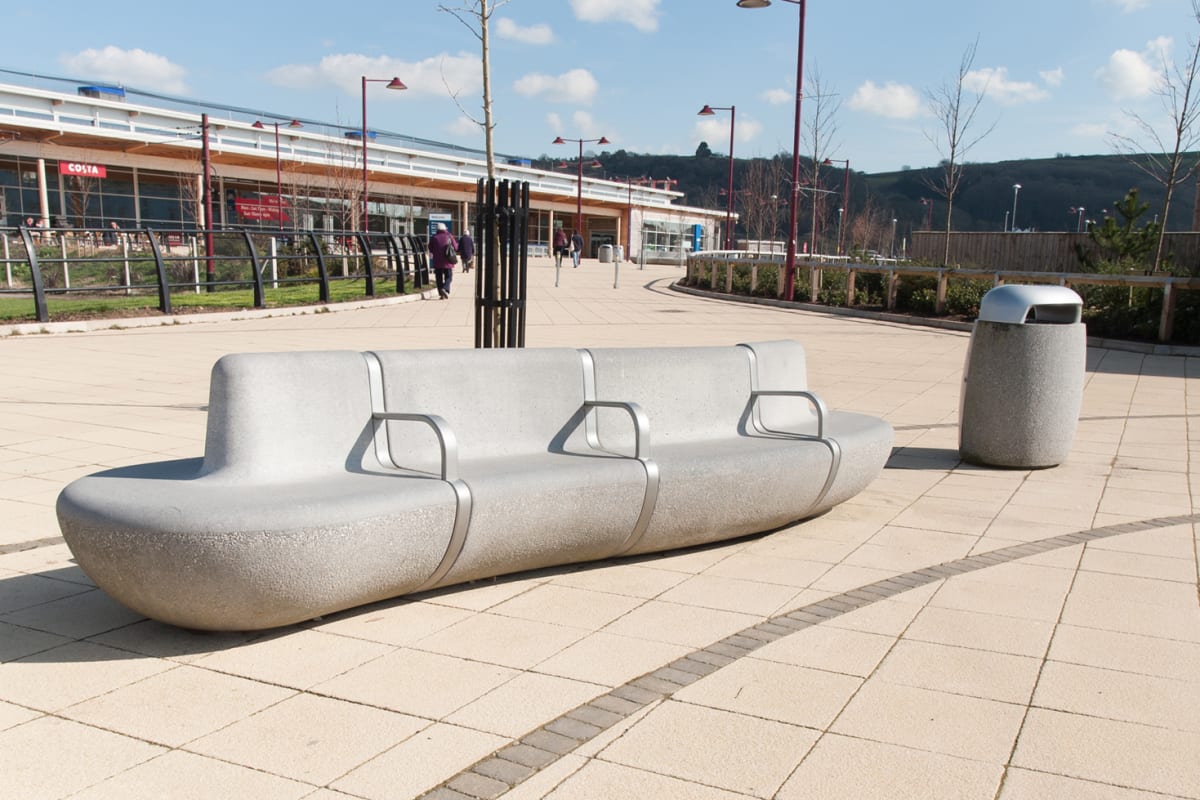

RhinoGuard® 75/40 Igneo Protective Seat
Vehicular-borne threats are a reality in many modern urban environments and with the RhinoGuard® Igneo Protective Seat, safety and security combined with a subtle visual appeal can be achieved.
Crash tested on two occasions, pinpointing different locations of the seat, Igneo can successfully withstand impact from a 7.5 tonne vehicle travelling at 40mph.
Manufactured using precast concrete, Igneo is available in 4 colour variations, all finished with an anti-graffiti coating. The optional armrests are manufactured using Ferrocast®, known for its resilience. These are available in a range of RAL colours in order to achieve the look you desire.
Igneo has been crash tested twice and the security classifications are V/7500(N2)/64/90:3.7/0.0 and V/7500(N2)/64/90:3.5/0.0.
*Igneo can be extended to the length you require with 3017mm being the minimum length.
- Modular system
- Crash-tested to PAS standards
- Durable and low maintenance
- 4 colours available
- Anti-graffiti coating
Technical Downloads (3)
- street furniture maintenance guide Download street furniture maintenance guide
- rhinoguard igneo protective seat Download rhinoguard igneo protective seat
Certifications, Accreditations & Credentials
Technical Documents
- street furniture maintenance guide Download street furniture maintenance guide
CAD Details
- rhinoguard igneo protective seat Download rhinoguard igneo protective seat
CAD Files
- rhinoguard igneo protective seat Download rhinoguard igneo protective seat
Product Details
Product Name | Height Above Ground (mm) | Fixing Method | Overall Height Including Root (mm) | Seat Height (mm) | Length (mm) | Width (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|
RhinoGuard® 75/40 Igneo Seat (2 ends & 1 middle module) | 874 | Root Fixed | 1159 | 474 | 3017 | 1240 | 1420 |
RhinoGuard® 75/40 Igneo Seat (end module) | 874 | Root Fixed | 1159 | 474 | 1093 | 1240 | 1000 |
RhinoGuard® 75/40 Igneo Seat (middle module) | 874 | Root Fixed | 1159 | 474 | 1036 | 1240 | 1200 |
*Igneo can be extended to the length you require with 3017mm being the minimum length.
